1.1
What is the required weighing capacity?
The required weighing capacity of the weigh module is not only determined by the heaviest product weight.
Read more/less
Other factors, such as additional installations or customized weighing pans, have to be added. Therefore, use the following formula:
C ≥ Wmax + WP + WC + WAPL
- C: Capacity of the weigh module
- Wmax: Biggest product weight
- WP: Weight of the weighing pan
(can be neglected in most cases) - WC: Weight of the container for weighing
multitude products - WAPL: Additional permanent Installation - these are application-specific items. (See also point 2 below)

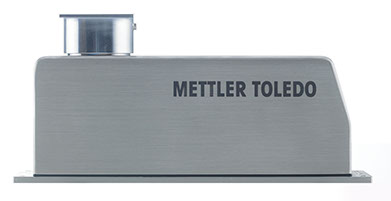

Compact high-precision weigh modules without display are
designed for integration into machines.
Therefore, parameter "WP" is zero, because the weighing pan is part of standard delivery and weight is factory adjusted.
1.2
Which readability is required?
Readability or displayed resolution is the smallest difference
in weight that can be read on a weighing instrument's display or that is transferred via interface to the processcontrol system.
Read more/less
But readability of a weigh module is often mistaken for accuracy. High readability doesn't necessarily mean high accuracy. Therefore, the weigh module should be selected according to the process requirements and the specifications for smallest net weight, repeatability and linearity.
x
Watch video that explains readability.
1.3
What is the accepted process tolerance in percentages?

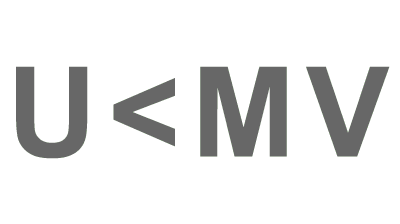

Quality will be ensured if an instrument’s measurement uncertainty is always better than your weighing process tolerance.
Read more/less
For example, measuring 1kg with a tolerance of 1% is only possible with a weigh module providing a measurement uncertainty <1% at the given net load of 1kg.
1.4

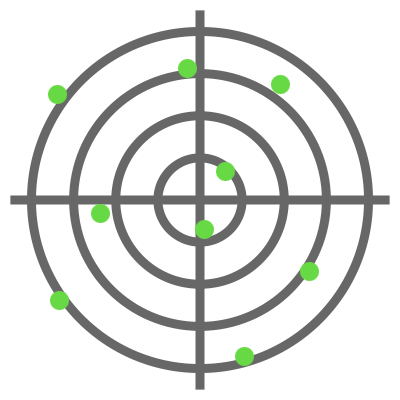

Which repeatability do you need?

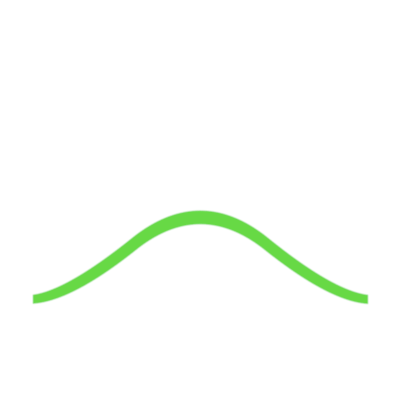

Repeatability specifically may affect high accuracy weigh modules, whereas for lower accuracy weigh modules (with low resolution) the rounding error dominates.
Read more/less
Consequently, the repeatability is most important criteria when selecting a weighing module for high accuracy applications. The repeatability is usually published in the specifications of the weigh module.
Information: Repeatability is calculated as the standard deviation of 10 weight measurements performed under the same conditions and with the same operator.
1.5

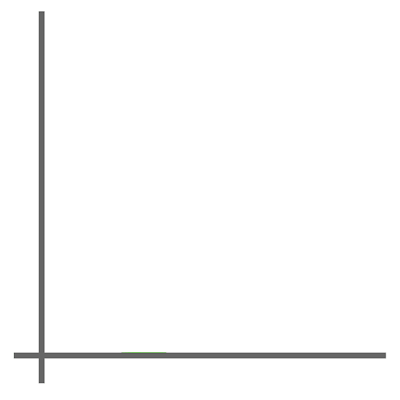

Which linearity do you need?

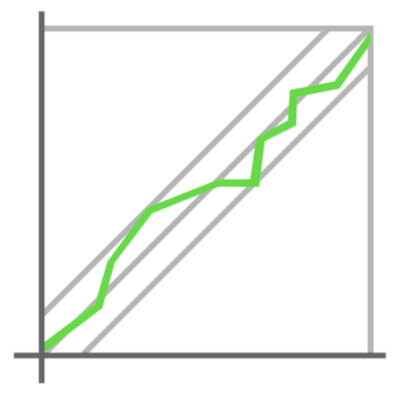

Linearity is defined as the ability of a weigh module to follow the linear relationship between a load (m) and the indicated value (W).
Read more/less
Non-linearity (NL) becomes a critical error source when a weighing process uses the entire weighing range (or most of it). The linearity is usually published in the specifications of the weigh module.
1.6
What is the minimum sample weight that needs to be determined?
The smaller the sample weight, the larger the relative measurement uncertainty becomes.
Read more/less
In the low-capacity range of the weigh module, there is a limit under which any measurement will have an uncertainty greater than the acceptable tolerance. Respecting the minimum weight of the weigh module ensures that all measurements are made within the required accuracy. The minimum weight is usually published in the specifications of the weigh module.
x
Watch video about measuring uncertainty.
1.7
What is your measurement uncertainty?
The accuracy of a measurement is determined by measurement uncertainty. A simplified formula for measurement uncertainty is:
Read more/less
U = 2 x √(Vw + Vr + Ve * W2 + Va * W2+ Vk* W2
U: Measurement uncertainty (= inaccuracy)
W: Actual weight placed on the weighing sensor
Vw: Standard deviation of repeatability
Vr: Rounding error
Ve: Deviation of corner load (eccentricity)
Va: Deviation of non-linearity
Vk: Deviation of the calibration weight(s)
x
Watch video with example of measurement uncertainty.
1.8
How do you assure accuracy?
Accuracy is verified, by calibration, to determine if there is a deviation between the true weight value and the measured value.
Read more/less
In case a critical deviation is detected, adjustment is necessary. The calibration frequency depends on the individual risks related to incorrect weight results. A process with actions has to be defined, if a deviation exceeds your acceptance criteria based on your process tolerance.
x
Watch webinar about routine testing.
1.9
How do you configure the internal adjustment weight?

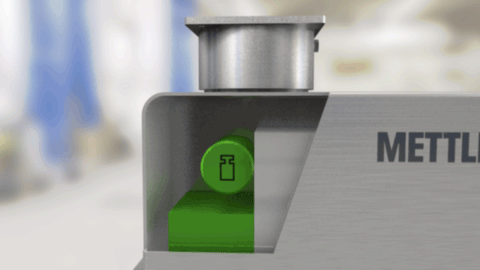

Test and adjustment with a weight, which is built into the weigh module, is the most efficient method.
Read more/less
It can be initiated by command from the control system via interface or automatically if temperature changed or after a time interval set during configuration. Sophisticated weigh modules can be adjusted with an internal weight, despite a permanent pre-load on the weighing pan, such as a conveyor or a hopper.
1.10
Do you combine calibration with an external test weight?

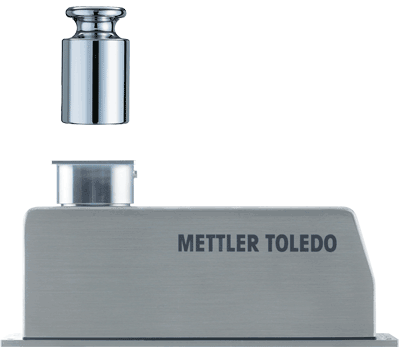

Test and adjustment can be done by positioning a certified weight onto the weighing pan if the weigh module is accessible inside the machine.
Read more/less
However, placing a test weight can be impossible, if an application-specific device is on top of the weighing pan.
It is recommended to combine tests with internal and external weights. The test with the internal weight is used to verify accuracy any time needed. The external test weight is used for traceability and to verify the internal test weight.
1.11
Which is the right Weigh Module for your needs? Use the Selector!
Select the Required Process Tolerance or Weighing Accuracy to make the right choice.
1.12
Do you have to document correct selection of the weigh module?
Applying a standardized scientific methodology for secure selection, calibration and operation of weighing equipment for design qualification, installation qualification, operation qualification and performance qualification.
Read more/less
The GWP Recommendation Certificate documents:
- Identification of installation
- Model name of weigh module
- Maximum capacity
- Readability
- Smallest permitted sample weight
- Weighing accuracy in %
- Typical minimum weight
- Your safety factor
- Conformity to standards and regulations
- Test weight for verification
- Accuracy class of test weight
RoHS
2.1
Is compliance with standards or regulations required?
Complying with quality-management or regulatory
standards might require certain weighing accuracy,
material standards or certified mechanical or electrical
design features.
Read more/less
In highly regulated industries in which consumer safety is at stake, such as food, cosmetics and pharmaceutical production, it can mean being subjected to frequent audits to prove compliance.
Installations including weigh modules might need compliance with the following standards:
- GMP requirements for accuracy of weighing equipment
- Hazardous areas: ATEX, FM, CSA
- RoHS (Restriction of Hazardous Substances Directive)
- Hygienic design, such as described in IFS, GMP, BRC, EHEDG and other guidelines
- Risk management based on HACCP or similar approaches
Complying with some of those standards means that the entire machine has to comply, not just the weigh module.
Watch webinar about revised USP Chapters 41 & 1251 on Balances.
2.2

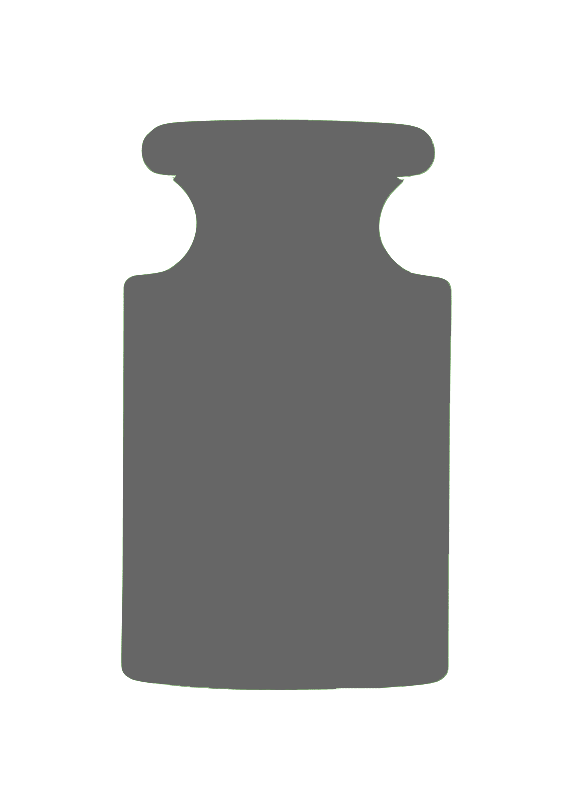

How do you ensure traceability of weights to
national or international standards?
Test weights are available with calibration certificates, which show traceability to the national standard, nominal value, conventional mass value, uncertainty, confidence level and the OIML accuracy class of the weight.
3.1
Is weigh module exposed to draft?
Air currents generate through impact pressure or viscous friction, spurious forces onto the weighing pan, weighing object or installation on top of the weighing pan.
Read more/less
A consequence of this effect is the deterioration of the repeatability of the weighing value and it might reduce speed of weighing process. Therefore, it might be necessary to add measures to prevent air currents.
3.2
Is material sensitive to an electrostatic load near the weigh module?
Electrically charged objects or installations on top of the weighing pan can exert an attracting or pushing force to the weighing platform.
Read more/less
As a consequence, the weight value can deviate from the actual mass of the object. Therefore, avoid non-conductive materials, such as glass, plastic, aluminum and ceramic.
+
-
-
+
3.3
Are heat- or cold-emitting sources near the weigh module?
A weigh module can detect temperature changes and compensate for them by adjustment of the internal
weight.
Read more/less
But fast temperature changes might not be compensated for immediately because most production process cannot be interrupted for testing. Therefore, it is best to keep heat- or cold-emitting devices away from the weigh module.
3.4
What are the cleaning requirements for weigh module?

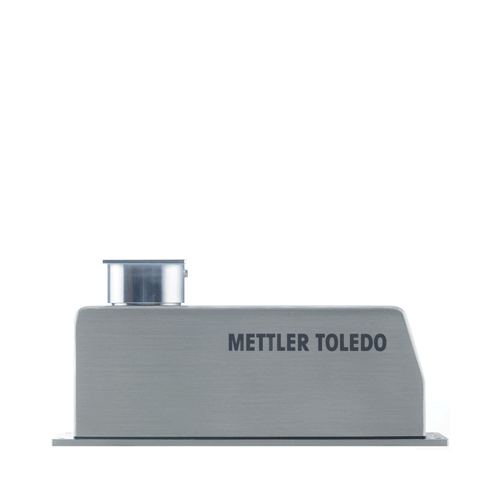

Cleaning can be tedious and costly, but it is crucial in the food and pharmaceutical industries, in which preventing contamination has high priority.
Read more/less
A weigh module with IP66 protection is beneficial, especially if CIP (Cleaning In Place) is required. This allows rinsing the weigh module with a liquid cleaning agent without having to dismantle the whole system.
x
Watch video about sealing the weigh module for wash down.
4.1
Which control-system interface technology do you need?
Machine control systems can communicate with weigh modules via serial interfaces.
Read more/less
For communicating with PLC systems, it is best to use globally recognized automation standards, such as industrial Ethernet or device networks. Digital Inputs are available for zero setting, tare and weight catch point. Digital outputs change status if weight set point (target) is reached.
x
Watch video about connecting the weigh module to a PLC.
4.2
How do you connect the weigh modules inside a control cabinet?

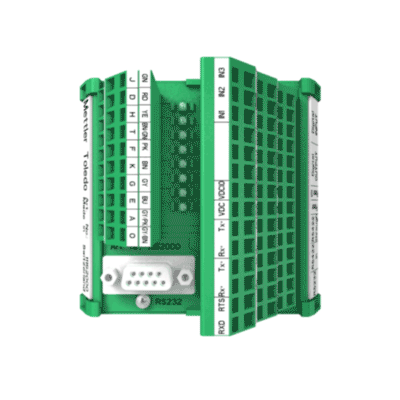

A dedicated connecting block with status LED for the
weigh module inside the control cabinet of the machine
makes wiring and commissioning more convenient and efficient. It allows for a fast status check of the weigh module's digital inputs and outputs and for its power supply.
4.3
How do you implement weight values into your PLC program?
Efforts for integrating a weigh module into the PLC (Programmable Logic Controller) programs can be reduced by using add-on profiles, generic station descriptions, faceplates or function blocks.
Read more/less
Dedicated fieldbus connectivity modules with integrated command set for weighing speed up commissioning of automation communication.
5.1
How do you access the weigh module for soft-
ware-configuration monitoring of weight value?

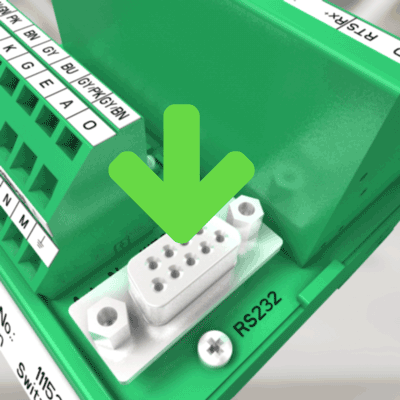

A connector as permanent service access to the weigh module inside the control cabinet facilitates configuration and maintenance.
Read more/less
During commissioning, it allows online monitoring of weight value and optimizing of parameters without unplugging the connection between the weigh module and control system.
5.2
How do configure weigh module and how do you backup software settings?
An open, computer-based software-configuration tool facilitates weigh monitoring, configuration and optimization of filter settings to adapt to the environment and to achieve high throughput rates.
Read more/less
It can also be used to backup settings and duplicate them into other weigh modules when the functions are identical to reduce setup time.
x
Watch Video about integrating high precision Weigh Modules into machines.
